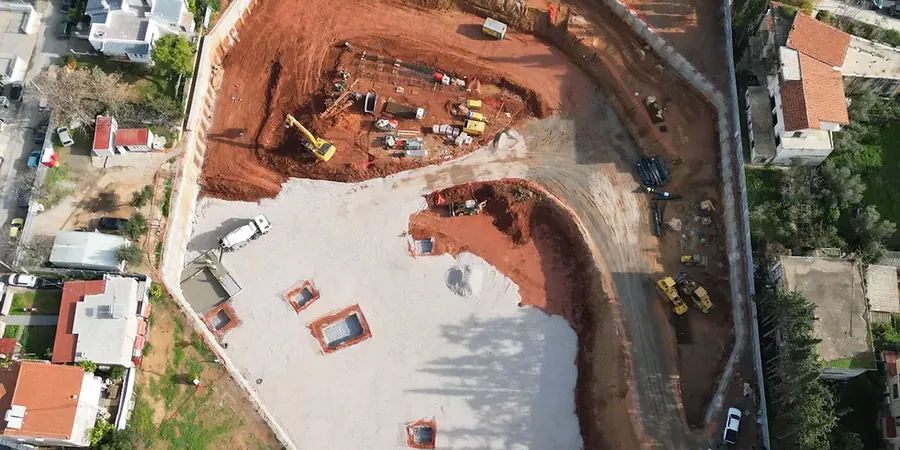

McKinney sits at roughly 630 feet above sea level, and what lies just beneath that elevation is often the biggest variable on any downtown or suburban project. Nearly 210,000 people call this city home, and the steady push of development means basements, underground parking, and utility vaults are no longer just a Dallas thing. Our team sees that the Eagle Ford Shale and the overlying expansive clays create a two-layer problem: the top wants to shrink and swell with the seasons, while the bedrock below demands a different shoring strategy entirely. A proper geotechnical design of deep excavations here has to reconcile both, which is why we combine regional drilling data with ASTM D1586 standard penetration tests and laboratory swell testing before a single shoring beam is specified. In McKinney, skipping that step turns a straightforward dig into a schedule and budget risk.
McKinney's expansive clay doesn't just push on walls — it changes volume by up to 40 percent between dry summer and wet winter, a load case most standard software doesn't capture.
Methodology and scope
- Reviewing existing boring logs and USGS surficial geology maps for McKinney West and East sectors.
- Running unconfined compression tests on shale cores to define the transition from weathered to competent rock.
- Modeling active earth pressures using drained parameters for the upper clay and undrained short-term parameters for the shale.
- Specifying tieback anchor bond lengths that work within the fracture zones common in the local bedrock.
Local considerations
A site in the historic downtown area and one out toward the rapidly developing Stonebridge Ranch subdivision can present completely different geotechnical challenges, even though they are separated by only a few miles. Downtown McKinney sits on older, more weathered shale that can degrade quickly when exposed to air and moisture, leading to raveling between soldier piles. Stonebridge Ranch, on the other hand, often has thicker sand lenses from ancient stream deposits, which means basal stability against a hard clay layer becomes the controlling factor. If the design doesn't account for that transition, you can get a classic bottom heave failure that progresses into the adjacent street. For this reason, we always run a basal heave check using Bjerrum and Eide's method when the soft-to-stiff clay thickness exceeds half the excavation width. It is a simple calculation, but it is the one most often overlooked in standardized shoring tables.
Applicable standards
ASCE 7-22 Minimum Design Loads, IBC 2021 Chapter 18 Soils and Foundations, ASTM D1586-18 Standard Penetration Test, ASTM D2487-17 Unified Soil Classification, FHWA NHI-14-007 Geotechnical Design of Drilled Shafts
Associated technical services
Shoring and Support of Excavation (SOE) Design
Complete design of soldier pile and lagging, secant pile, or soil nail walls for cuts up to 45 feet deep in McKinney's layered soils. Includes anchor design, waler sizing, and a detailed construction sequence that respects the city of McKinney right-of-way and utility clearance requirements.
Excavation Monitoring and Instrumentation Plans
Specification and layout of inclinometers, optical survey points, and crack monitors for adjacent structures. We correlate real-time movement data with the original design assumptions, allowing the contractor to adjust the dig rate if movements approach the 0.5-inch threshold common for brick-clad buildings in the historic district.
Typical parameters
Frequently asked questions
How deep can you excavate in McKinney before hitting refusal in the shale?
Refusal for standard auger drilling typically occurs between 18 and 30 feet in western McKinney, but in the east it can be as shallow as 12 feet. The weathered shale zone is highly variable. We use rock coring with an NQ barrel to distinguish between refusal from a single boulder and a continuous competent rock layer that will require a different excavation method.
What is the typical cost range for a geotechnical excavation design in McKinney?
For a commercial or mixed-use project with a single-level basement, the geotechnical design package typically ranges from US$2,180 to US$9,220. The final figure depends on the number of borings, the depth of the cut, and whether a tieback anchor testing program is required.
Do you need to consider sulfate attack on shoring concrete in this area?
Yes. Many of the soils in Collin County, particularly the Taylor Marl and Eagle Ford formations, contain soluble sulfates that can attack Type I portland cement. We specify sulfate-resistant cement (Type II or Type V) for any permanent structural facing or soldier pile concrete that will be in direct contact with the native soil for more than a few months.
How do you handle groundwater in a deep excavation in McKinney?
The water table in McKinney is often perched within the upper clay layer rather than a continuous aquifer. We find that a system of prefabricated vertical strip drains behind the lagging, combined with a sump pump at the base, handles most situations. For cuts exceeding 30 feet near the floodplain, a full dewatering analysis using well points may be needed to prevent a quick condition in sand lenses.
What is the biggest risk in a deep excavation in McKinney's expansive clay?
The biggest risk is not the cut itself but what happens to the adjacent buildings when the excavation acts as a giant drying front. Removing the overburden exposes the clay to evaporation, causing shrinkage that can undermine shallow footings 20 to 30 feet away. We mitigate this by requiring a continuous concrete cap over the exposed clay at the excavation base and limiting the time the cut stays open before the permanent structure is placed.
