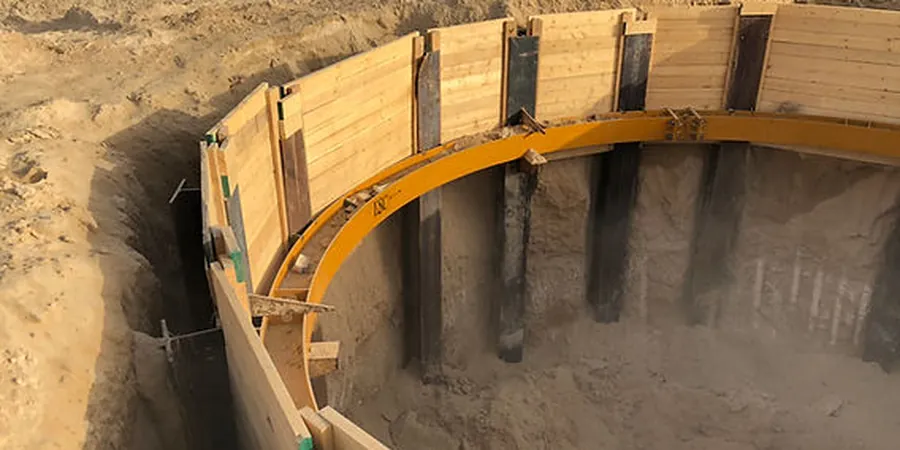

We still see projects north of US-380 where the structural engineer assumes a uniform bearing stratum and skips the deep boring program. In McKinney, that is a costly gamble. The Eagle Ford Shale weathers unevenly across the city, and the Taylor Marl lenses that appear west of Custer Road can lose strength rapidly with moisture change. Our pile foundation design process starts with a stratigraphic model built from SPT data, lab index testing, and local geologic mapping — not just a generic presumptive capacity. The Texas Section of ASCE has documented multiple foundation failures in Collin County tied to differential heave, and our approach addresses that risk directly through triaxial testing on undisturbed samples recovered from the proposed pile tip elevation, giving us drained strength parameters that feed the axial capacity calculations in LPILE or GROUP.
In McKinney's weathered shale, pile capacity is governed more by side shear degradation from moisture cycling than by end bearing — our lab testing quantifies that loss directly.
Methodology and scope
Local considerations
McKinney's population passed 220,000 in 2024, and the pace of platting in the city's extraterritorial jurisdiction has accelerated the conversion of pastureland into residential subdivisions and light industrial parks. Historically, the downtown grid was built on relatively shallow footings over stiff clay that had equilibrated to decades of wet-dry cycles. The new construction, however, introduces irrigation and impervious cover that alter the moisture regime beneath the slab or pile cap. We see edge lift and center heave patterns that can generate enough moment to crack a grade beam if the pile group was not designed with adequate tension capacity in the outer rows. Our pile foundation design explicitly models the active zone — typically the top 12 feet in McKinney — and assigns zero skin friction within that depth for uplift calculations, which is more conservative than the default assumptions in many commercial software packages.
Applicable standards
IBC 2024 Chapter 18 (Soils and Foundations), ASTM D1586-18 Standard Test Method for SPT, ACI 318-19 Building Code Requirements for Structural Concrete, AASHTO LRFD Bridge Design Specifications 10th Ed., ASTM D1143/D1143M-20 Standard Test Methods for Deep Foundations Under Static Axial Compressive Load
Associated technical services
Axial Capacity Analysis and LRFD Calibration
We produce resistance factors calibrated to site-specific load test data, using the Nordlund, Thurman, and O'Neill & Reese methods for side friction and end bearing in shale. Each report includes a settlement estimate under service loads and a group efficiency reduction where pile spacing is less than 3 diameters.
Installation Monitoring and Dynamic Testing
During pile driving or drilled shaft concreting, we provide PDA testing per ASTM D4945 and cross-hole sonic logging per ASTM D6760 to confirm shaft integrity before the cap is poured. Our field crew coordinates directly with the contractor's superintendent to minimize standby time.
Typical parameters
Frequently asked questions
What is the typical cost range for a pile foundation design package for a single-family residence in McKinney?
For a residential project on a standard lot within McKinney city limits, the complete pile foundation design package — including the geotechnical investigation, lab testing program, axial and lateral capacity calculations, and the signed engineering report — typically runs between US$1,880 and US$7,110. The final number depends on the number of borings required, the depth to competent shale, and whether dynamic load testing is specified by the building official.
How deep do piles need to go to reach competent rock in McKinney?
It varies by watershed. East of Highway 5, we often encounter weathered Eagle Ford Shale at 12 to 18 feet, and piles can terminate 3 to 5 feet into that stratum. West of Custer Road, alluvial deposits can push the refusal depth to 30 feet or more, and we sometimes need to extend piles through gravel lenses before reaching the shale interface.
Which load test method does the City of McKinney require for commercial projects?
The City of McKinney Building Inspections Department follows IBC Chapter 18, which requires static load testing per ASTM D1143 or high-strain dynamic testing per ASTM D4945 with signal matching on at least one pile per foundation unit. For projects over three stories, we typically recommend a static test on a reaction pile to satisfy the special inspection requirements.
How do you account for expansive clay uplift in the pile design?
We run swell pressure tests (ASTM D4546) on Shelby tube samples from the active zone and model the uplift force as the lesser of the swell pressure times the shaft perimeter or the undrained shear strength from our triaxial tests. The pile reinforcement is then detailed for the full tension load over the active zone depth, with a safety factor of 1.5 per IBC.
