A four-story medical office building near Highway 380 sat on deep, stiff Austin Chalk residuum. The structural team wanted a fixed-base moment frame until our borings showed a 12-foot layer of highly plastic, moisture-sensitive clay above the weathered rock interface. That discovery shifted the entire lateral strategy toward base isolation. In McKinney, where the seismic hazard is moderate but the soil profile can amplify short-period motion by 40 percent or more, isolating the superstructure from ground-transmitted forces is often the most cost-effective path to immediate occupancy performance after a design-basis event. We run the isolator selection against site class D profiles per ASCE 7-22 Chapter 17, factoring in the long-period displacement demand that governs lead-rubber and friction pendulum systems when the fundamental period is pushed past 2.5 seconds. For projects where the subgrade transitions from stiff fissured clay to deep alluvium across the pad, we sometimes recommend coupling the isolation plane with a deep foundation system to control differential settlement under the isolator pedestals.
A properly tuned isolation plane cuts the spectral acceleration demand on the superstructure by 60 to 80 percent in McKinney's predominant 0.2-second period range.
Methodology and scope
Local considerations
McKinney sits 17 miles east of the Meers Fault trace in Oklahoma, which produced a M7.0 event roughly 1,200 years ago and remains classified as capable by the USGS Quaternary Fault Database. While the recurrence interval is long, the deterministic cap on ground motion for critical facilities in Collin County cannot ignore it. A fixed-base building on site class D soil at this location can experience a short-period spectral acceleration of 0.55g—enough to yield steel moment frames and trigger non-structural damage that closes a hospital for weeks. Base isolation drops that demand below 0.15g at the isolation period, keeping drift ratios under 0.5 percent. The secondary risk is moisture-driven clay heave under exterior isolator pedestals, which we mitigate with deepened perimeter beams and a continuous underslab drainage layer tied to the stormwater retention system. Without those measures, differential movement across the isolation plane can bind the moat wall and short-circuit the seismic gap.
Applicable standards
ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2024, Chapter 17: Special Inspections and Tests (isolator verification), ASTM D4014-23 Standard Specification for Plain and Steel-Laminated Elastomeric Bearings for Bridges (adapted for buildings), ISO 22762-1:2022 Elastomeric seismic-protection isolators — Part 1: Test methods, AASHTO Guide Specifications for Seismic Isolation Design, 4th Ed. (LRFR isolator property modifiers)
Associated technical services
Isolator System Design and Peer Review
Nonlinear response-history analysis with 11 ground motion pairs per ASCE 7-22 §17.3.2, including upper-bound and lower-bound isolator property cases. We deliver the design basis report, isolator schedule with prototype test matrix, and coordinate the independent peer review required for Risk Category III and IV structures. Our team manages the full submittal package for the City of McKinney building plan review, including the geotechnical baseline report that justifies the site class assignment and liquefaction exclusion.
Construction-Phase Isolator Testing and Inspection

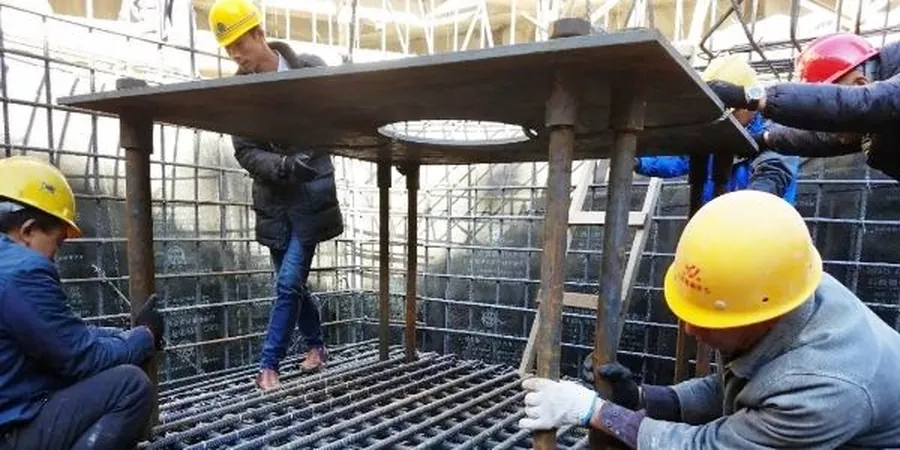

Full-scale production testing of isolator prototypes at the manufacturer's facility per the approved quality control plan, including compression stiffness, effective shear modulus aging, and scragging recovery verification. During installation, we inspect pedestal rebar alignment to a 3/8-inch tolerance, verify moat wall clearances match the design displacement plus 10 percent, and witness the final snubber gap setting before the superstructure formwork proceeds.
Typical parameters
Frequently asked questions
What does a base isolation design package cost for a typical McKinney commercial building?
For a mid-rise commercial project in the McKinney area, the complete base isolation design package—including site-specific ground motion selection, nonlinear time-history analysis, isolator property specification, prototype test matrix, and peer review coordination—ranges from US$4,600 to US$7,620 depending on the number of isolator types and the complexity of the superstructure irregularities. Projects requiring a 3D soil-structure interaction sub-model fall at the upper end of that range.
Is base isolation justified for a three-story office building in a moderate seismic zone like North Texas?
The reference range for this service in McKinney Texas is US$4.600 - US$7.620. The final price depends on the project scope and volume.
