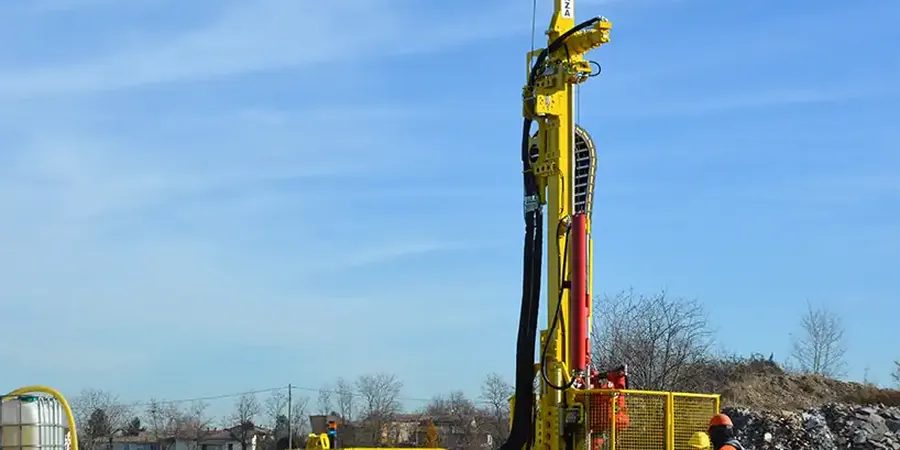

One of the more costly mistakes we see in McKinney’s newer subdivisions is treating the entire site like uniform clay. The Blackland Prairie doesn’t work that way. You’ll hit stiff Eagle Ford shale at 15 feet on one lot and weathered Austin Chalk at 8 feet on the next — even within the same cul-de-sac. Without an SPT (Standard Penetration Test) program that captures those transitions, foundation assumptions fall apart. We run the split-spoon sampler per ASTM D1586, measuring N-values every 2.5 feet through the weathered zone where most of McKinney’s bearing problems originate. When the profile shows a soft seam between two stiff layers, that’s where we flag it — before the slab goes in. For sites near the Trinity River tributaries where alluvial deposits complicate the picture, we often pair the borehole program with CPT soundings to capture continuous tip resistance through thin sand stringers that the SPT spoon can miss. And on commercial pads in the Craig Ranch corridor where fill thickness varies unpredictably, the sand cone density test gives us compaction verification that correlates directly with SPT refusal depths.
McKinney’s expansive clay can post N-values of 20 and still heave 3 inches — the blow count alone never tells the full story.
Methodology and scope
Local considerations
McKinney sits at roughly 630 feet elevation on the western edge of the Blackland Prairie, where the Eagle Ford Shale weathers into clay soils with liquid limits routinely exceeding 60. The last significant seismic event affecting North Texas was the 4.0 magnitude quake near Venus in 2015 — not large by any measure, but a reminder that the Fort Worth Basin has induced seismicity potential that the IBC requires us to address. More pressing for SPT interpretation is the moisture regime: McKinney averages nearly 40 inches of rain annually, concentrated in spring and fall, which drives seasonal soil moisture fluctuations down to 12 feet. An SPT program run in August when the clay is dessicated and fractured will yield N-values 30–40% higher than the same soil tested in March after sustained rainfall. We account for that seasonal bias explicitly in our bearing capacity calculations. When N-values in the upper 10 feet come back below 8 in saturated conditions, the IBC’s presumptive bearing drops below 1,500 psf — that’s drilled pier territory, and we’ll flag it immediately rather than letting a slab design proceed on summer numbers.
Explanatory video
Applicable standards
ASTM D1586-18 — Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, ASTM D2487-17 — Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), IBC 2021 — Section 1803 Geotechnical Investigations (adopted by City of McKinney with Texas amendments), FHWA NHI-05 — Subsurface Investigations: Geotechnical Site Characterization (reference for SPT-based design)
Associated technical services
Residential SPT for Slab-on-Grade Design
Two to four boreholes to 20–25 feet depth covering the typical McKinney residential lot. We focus on the top 15 feet where active zone moisture cycling controls slab performance, reporting N60 values and plasticity data for post-tensioned slab design per PTI DC10.5.
Commercial Borehole Programs with SPT Logging
Multi-borehole layouts on 100-foot grids for office-warehouse and retail pads, typically extending to 30–40 feet or practical refusal. Includes groundwater monitoring well installation where the IBC requires it, plus correlation with laboratory strength testing on selected Shelby tube samples.
SPT-Based Liquefaction Screening
While McKinney is not in a high-seismicity zone, IBC 1803.5.12 requires liquefaction assessment for sites with shallow groundwater and loose granular soils. We run SPT-based screening per Seed & Idriss and Youd et al. (2001) when sandy alluvium is encountered, particularly near the East Fork Trinity River corridor.
Typical parameters
Frequently asked questions
How many SPT boreholes does McKinney require for a single-family residential lot?
The City of McKinney doesn't mandate a fixed number — it depends on site conditions and the foundation engineer's judgment. For a standard 60-by-120-foot lot on prairie clay, two boreholes placed at opposing corners of the proposed building footprint is the typical minimum. If the initial drilling reveals abrupt stratigraphic changes or undocumented fill, we'll recommend a third boring to bracket the transition. The IBC default of one boring per 2,500 square feet of building area for structures under 5,000 square feet is a good starting point, but McKinney's variable weathered shale contact often warrants closer coverage than the code minimum suggests.
What N-value indicates refusal in McKinney's shale formations?
We generally consider 50 blows per 6 inches as practical refusal per ASTM D1586, and in McKinney's Eagle Ford Shale that condition is commonly reached between 15 and 25 feet depth. However, refusal here isn't always a clean bedrock surface — you'll sometimes see N-values oscillate between 30 and 50+ over a 5-foot interval as the auger cuts through alternating weathered and competent shale layers. We report those transitional zones carefully because a foundation designer might mistake intermittent refusal for a uniform bearing stratum. When N-values exceed 50 within the depth of influence for the proposed footing, we'll flag it as a potential end-bearing surface worth coring.
How much does SPT testing cost for a McKinney residential project?
For a typical McKinney residential lot requiring two to three boreholes to 20–25 feet depth, the SPT investigation generally runs between US$550 and US$770 per borehole, depending on access conditions, drill rig mobilization distance, and whether groundwater monitoring wells are included. The total project cost for a standard two-borehole program with lab classification on selected samples typically falls in the US$1,200 to US$1,700 range. Sites in the Trinity River floodplain that require deeper drilling or encounter caving soils may push toward the upper end.
Can SPT blow counts be used directly for bearing capacity in McKinney's expansive clay?
Only with appropriate corrections and an understanding of the soil's moisture-sensitive behavior. Raw N-values in McKinney's high-plasticity Eagle Ford clay can overestimate bearing capacity by 30 to 50 percent when the soil is dry, because dessication fractures and negative pore pressures artificially stiffen the formation. We apply energy ratio corrections to convert raw N to N60, then reduce further for seasonal moisture variation before tabulating presumptive bearing values. The IBC Table 1806.2 ranges are a useful starting point, but site-specific correlations backed by laboratory strength data are standard practice here. No responsible geotechnical engineer in Collin County assigns bearing pressure from blow counts alone without accounting for the swell potential.
